Why interstitial space decisions made in early design determine your building’s profitability, schedule, and long-term value

You’re developing a building to perform: financially, functionally, and for the long haul. You want impressive floor-to-ceiling heights that attract tenants, a delivery schedule that protects your pro forma, and a facility that holds its value and earns its keep for decades. That’s not an unreasonable ask. It’s exactly what good development looks like.

But somewhere between schematic design and construction, a decision that no one paid much attention to starts costing you everything you were trying to protect. That decision is how much space you allocated above the ceiling.

The Space Nobody Owns — Until It’s Too Late

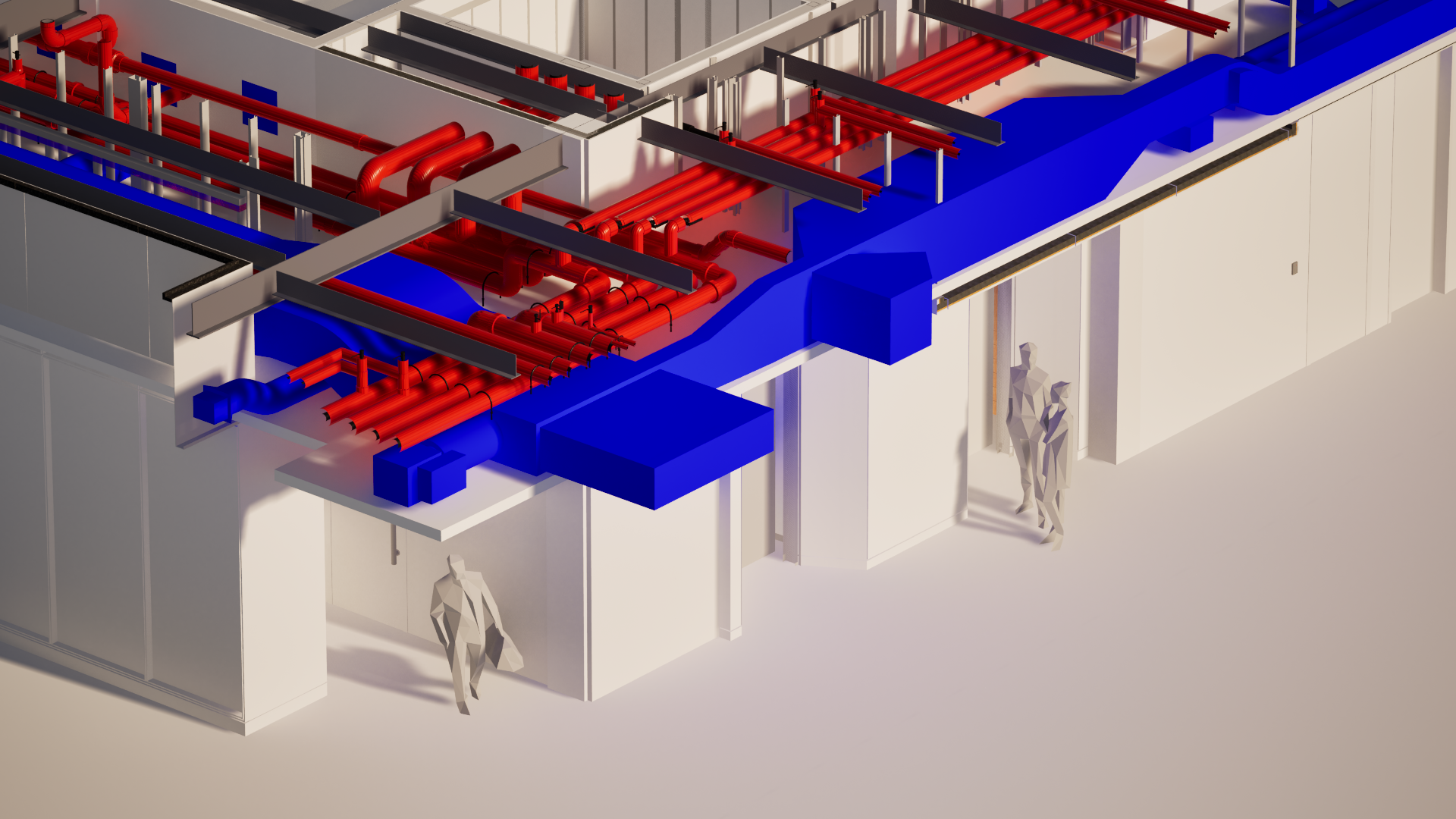

The space above your ceiling is more than just a void to hide ductwork. The interstitial space is the building’s entire life support system in a single compressed zone: HVAC ducts, electrical conduits, plumbing pipes, fire sprinklers, data cables, and controls, all competing for the same limited vertical clearance. One VIATechnik senior engineer describes it plainly: “The section is the key flashpoint of coordination, but it’s the last thing anyone takes seriously until something goes wrong in the field.”

The problem is simple: design teams often treat above-ceiling space as leftover volume rather than first-class design space. Architects, designers, and engineers take for granted the amount of space needed, only to discover during construction that it’s a field coordination nightmare. The solution must come early during design phase coordination when the space requirements can still be locked in with architecture, not after construction documents are complete.
This isn’t a niche construction problem. It’s a development risk that flows directly to your bottom line — through schedule delays, unexpected cost overruns, compromised building performance, and a tenant experience that never quite lives up to the renderings.

The Gap That Opens Up in Schematic Design

Owners want maximum ceiling heights and maximum rentable square footage. Structural engineers need their beam depths. Fire protection systems require specific clearances. MEP engineers are left routing large rectangular ducts, insulated round pipes, and cable trays through whatever vertical dimension remains — often without anyone having done the math first. What makes this particularly challenging is the inherent unpredictability of MEP requirements. Ductwork aspect ratios, insulation thickness, support structures, and required access clearances all consume space in three dimensions. A 24-inch duct doesn’t just need 24 inches—it needs room for insulation (adding several inches on all sides), hangers, slope for drainage lines, and clearance from other systems. When you factor in structural elements like open web joists, the available routing paths become a three-dimensional puzzle that requires careful early planning.

What It’s Actually Costing You

When plenum depth isn’t treated seriously during schematic design, the consequences ripple through the entire project timeline. During the construction phase, setbacks and delays related to ductwork installation become inevitable. Multiple trades—mechanical, electrical, plumbing, and fire protection—must work in the same congested space, often simultaneously. What should be parallel workflows become sequential bottlenecks.

The coordination challenges multiply when changes occur. Minor rerouting due to field conflicts can cost anywhere from $500 to $3,500. Major conflicts? Between $2,000 and $25,000 per occurrence. These aren’t just financial costs—they’re schedule delays, general condition overruns, and owner opportunity costs. In laboratory and healthcare projects, where precision and cleanliness matter most, the disruption becomes even more severe.

But the financial impact doesn’t end at substantial completion. It follows your building for its entire life.

Squeezed plenums force mechanical systems into compromised configurations. Acoustics suffer — the HVAC systems meant to provide comfort become sources of noise and vibration. Indoor air quality degrades when ducts must be downsized or given excessive aspect ratios to fit tight spaces. Thermal comfort becomes harder to maintain, creating hot and cold spots that generate persistent occupant complaints.

And then there’s what it does to the people actually using your building. Low effective ceiling heights — the result of systems that encroach further than planned — create environments that feel oppressive. Research consistently links ceiling height to cognitive performance, perceived spaciousness, and occupant satisfaction. For an office developer, that translates directly to tenant retention and lease renewal rates. For a healthcare or lab owner, it affects clinical function and staff performance. The building stops working for the people you built it for, and that flows directly to your revenue.

Perhaps most critically, an under-planned interstitial space locks in inflexibility. Healthcare facilities alone undergo an average of seven or more remodels over a 50–100-year lifespan. A building that can’t accommodate change — can’t reroute systems, upgrade infrastructure, or adapt to new technologies without major disruption to occupied areas — starts losing value the moment it opens.

The Solution Exists. It Just Has an Expiration Date.

The fix isn’t complicated. The timing is.

During early design — before floor-to-floor heights are committed and before construction documents are complete — the solution is to treat the interstitial space as a first-class design problem, not a residual one. That means sketching real dimensioned sections with actual duct sizes, pipe diameters, insulation thicknesses, support requirements, and clearance minimums. Not assumptions carried over from the last project. Not rules of thumb. Real numbers, worked through with architects, structural engineers, and MEP teams while there is still room to move things.

It means assigning a single coordination lead whose job is to make the section — the vertical slice through the building — the primary flashpoint of alignment across all trades before conflicts compound. It means locking plenum depth the same way you lock structural depths and finished ceiling heights: deliberately, early, and with everyone in the room.

The cost of doing this during schematic design is negligible. The cost of not doing it compounds from the moment the first trade hits a conflict in the field.

What happens when you don’t: a hospital in New York

A six-story hospital was built with the top floor left empty — smart in theory, preserving flexibility for future programming as the facility evolved. But with no immediate occupants, the space was built like a penthouse mechanical room, not a future clinical floor. Ductwork was routed for convenience, equipment was placed freely, and clearance was nobody’s problem because nobody was living with it yet. The space was built like a penthouse mechanical room, not a future clinical floor.

Just a year later, when the time came to build it out, those decisions were immovable. At one critical pinch point, existing ductwork — feeding active floors below — drops the available ceiling clearance to less than seven feet. It cannot be rerouted. It cannot be raised. It cannot be touched.

That single constraint didn’t just create a low ceiling in one corner. It dictated the entire space plan for a clinical floor. The nurse’s station — the operational heart of a hospital unit, the hub where staff monitor patients, coordinate care, and respond to emergencies — had to be placed at that pinch point because it was the only program element that could tolerate a ceiling that low. Not because it was the right clinical layout. Not because it supported patient visibility, staff workflow, or the way care actually gets delivered. Because a duct, installed a year earlier with no thought given to what would eventually come above it, left no other option. The building is now constraining the care it was built to deliver. The ceiling no one planned became the floor plan no one wanted.

This Decision Has a Deadline

Early design is the only moment when interstitial space is still a design decision rather than a damage control exercise. Once floor-to-floor heights are set, your options don’t disappear — they just get dramatically more expensive.

The owners who protect their pro forma, their schedule, and their building’s long-term value are the ones who bring this conversation to the table before the section is drawn, not after construction exposes what wasn’t planned.

If you’re in early design right now, contact VIATechnik. This is exactly the coordination we do — before the decisions that seem small become the ones you can’t undo.
